CU Type Combined Forming Machine Light Gauge Steel Keel Structure Frame

Name: CU Type Combined Forming Machine Light Gauge Steel Keel Structure Frame
Brand: Gracias
Price: 1 USD

Brand Name : Gracias

Model Number : CU

Place of Origin : China

MOQ : 1set

Price : As discussion

Payment Terms : T/T, L/C, Western Union

Supply Ability : 45sets per month

Delivery Time : 30-60 work days

Packaging Details : fit for ocean shipping

Purpose : Steel Structure

Condition : New

Warranty : 1 Year

Use : Roof

Type : Tile Press

Model : Keel Machine

Material of roller shafts : 45#steel

Alias : Tile Press

Contact Now

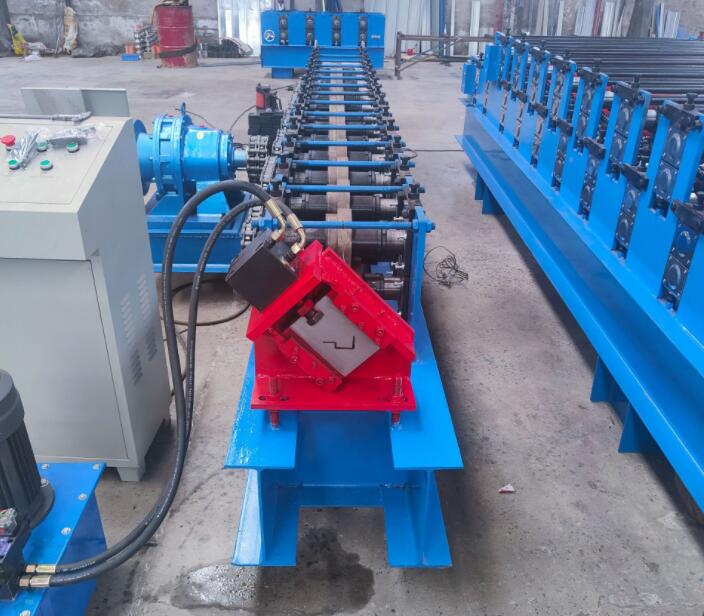

CU Type Combined Machine

Product intruduction:

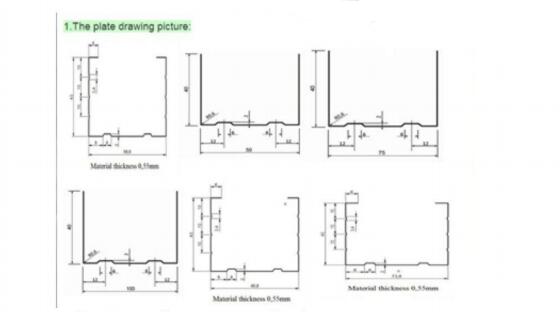

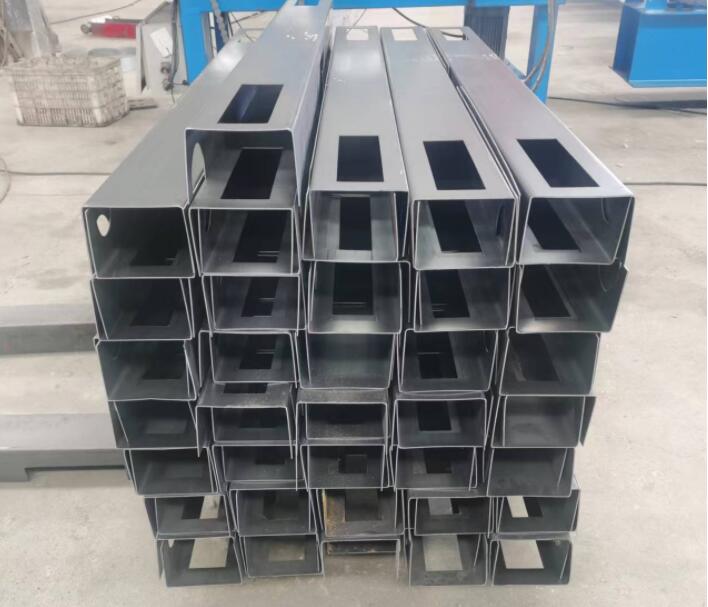

The equipment is applicable to the products produced
Auxiliary keel, card type keel, vertical keel, heaven and earth keel, main keel,

triangular keel sideline keel, T-shaped paint main keel, T-shaped paint auxiliary keel.

Product advantages:

1.Easy to understand
2.Full automatic hydraulic shearing
3.Full CNC shearing data operation

Technical parameters:

Decoiler 500KG
Roller stations:10 roller stations
Rollers material:Cr12
Roller shaft diameter: 50MM, 45# steel with professional treatment
Main motor: 7.5KW
Hydraulic automatic cutter,cutter material is Cr12, capability power: 3KW
Hydraulic automatic punching,cutter nnaterial is Cr12,capability power: 3KW

Production speed: 0-25M/Min(with punching work),0-15M/Min with punching work.
PLC automatic control system by HMI, famolus brand, stable and convenient operation.
